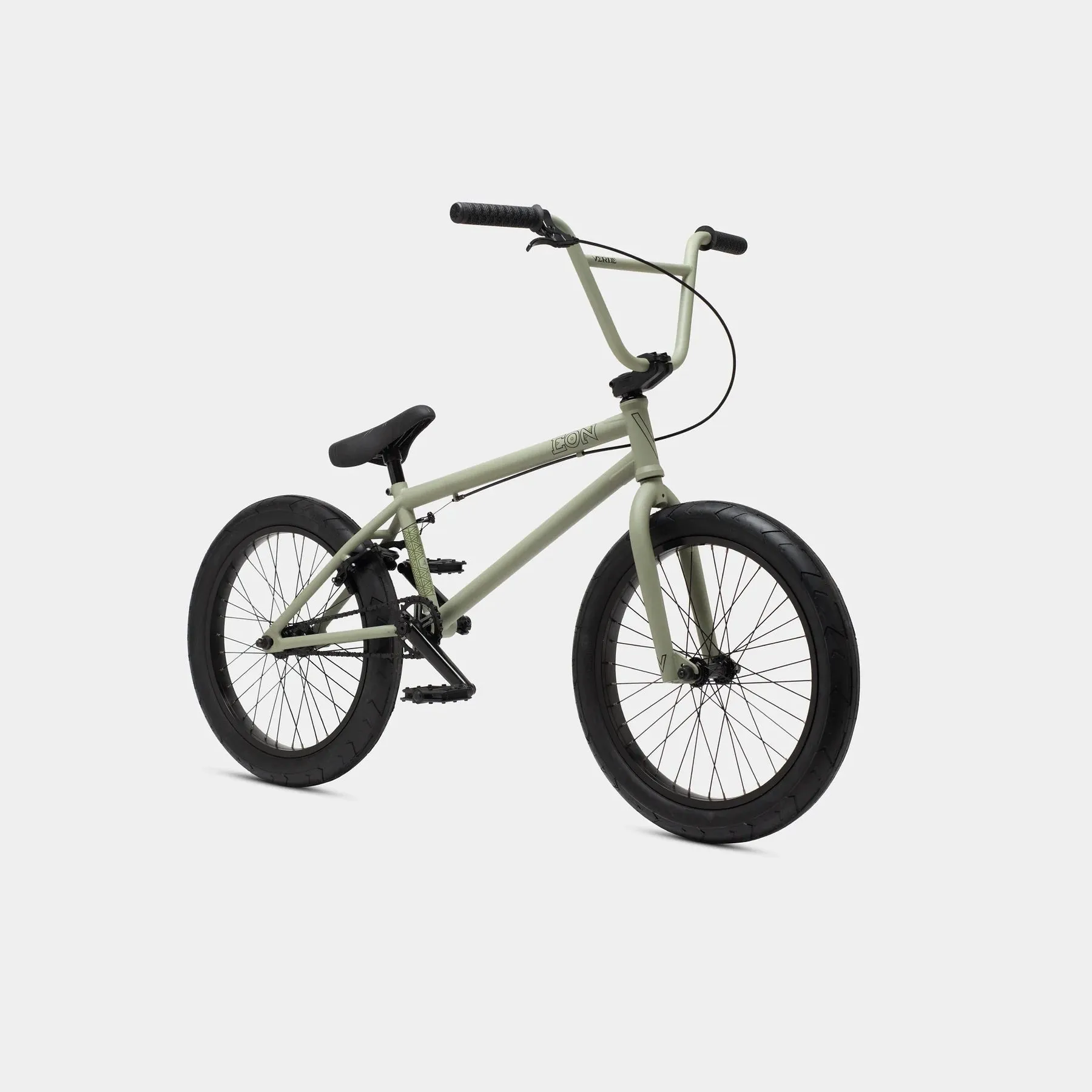

The new Eon merges modern spec, pop color, and flair to create a great all-around ride. The Eon frame features chromoly top and down tubes, a taller standover, tapered leg forks, 9-inch rise bars, Verde Branch padded 1-piece seat/post combo, and alloy Recon 25T sprocket keep this ride tight. Perfect for parks, pump tracks, and street. Three colors. Two sizes. Too steezy.
Frame Spec
- Frame: Hi-ten steel frame w/ chromoly top and down tubes, CNC machined integrated head tube, Mid BB, top tube gusset w/ Verde logo
- Top Tube Length: 20.5” or 21” (XL)
- Chain Stay Length: 13.5”
- Head Tube Angle: 74.5º
- Seat Tube Angle: 71º
- Bottom Bracket Height: 11.7”
- Standover Height: 8.9”
Parts Spec
- Fork: Hi-ten steel w/ 2-piece chromoly steerer tube, tapered legs
- Bars: Hi-ten steel, 9” rise
- Stem: Verde top load, 50mm reach
- Headset: Sealed integrated
- Brake: Alloy U-brake
- Lever: Alloy, 2-finger design
- Rear Hub: Verde 100, fully sealed, alloy, 14mm axle, 9-tooth driver
- Front Hub: Verde 100, fully sealed, alloy, 3/8” axle
- Sprocket: Verde Recon 25-tooth, stamped 6061 aluminum
- Cranks: Tubular chromoly 3-piece, 170mm
- BB: 19mm sealed Mid
- Chain: PYC 410, black
- Pedals: DUO Brand Resilite platform
- Front Rim: 6061 aluminum, single wall, 36-hole
- Rear Rim: 6061 aluminum, single wall, 36-hole
- Spokes: Black w/ black nipples
- Front Tire: 20 x 2.4” DUO Brand HSL, 65psi
- Rear Tire: 20 x 2.4” DUO Brand HSL, 65psi
- Seat Verde Branch w/ integrated post
- Seat Post: Uni-style, integrated, alloy, 25.4mm diameter, 130mm length
- Seat Clamp: Integrated
- Grips: Verde Leaf grips w/ press-in Verde bar ends
- Weight: 25.3 lbs
