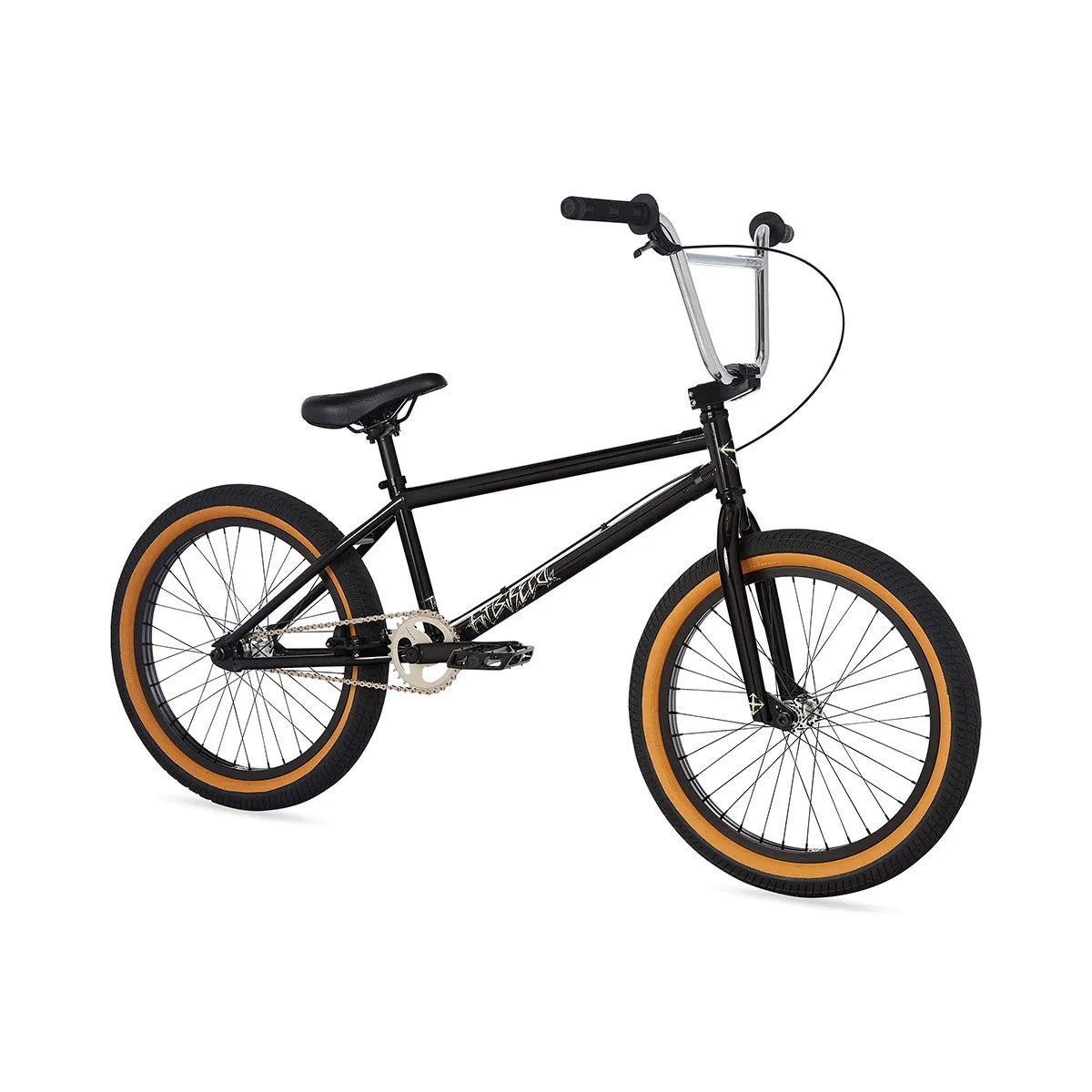

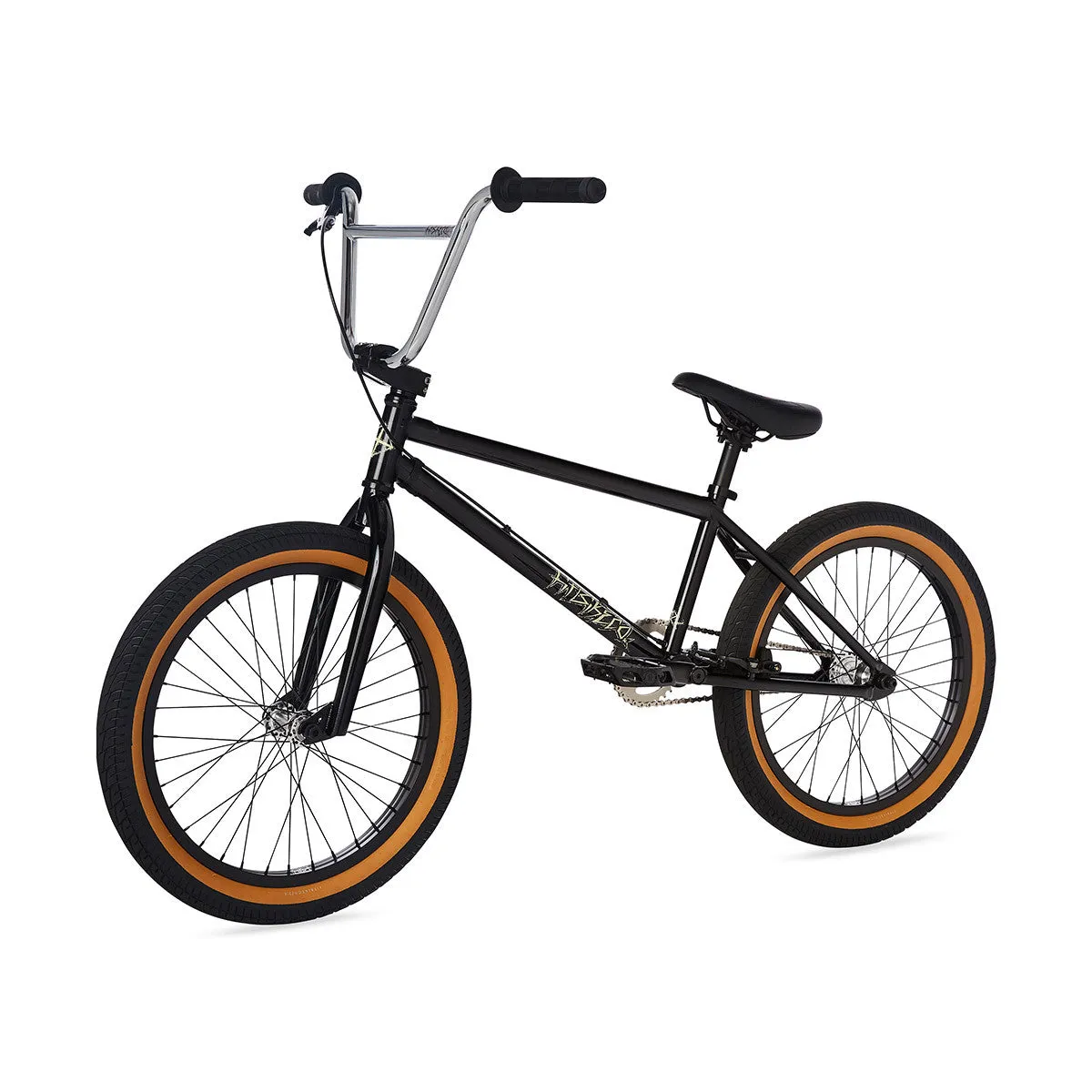

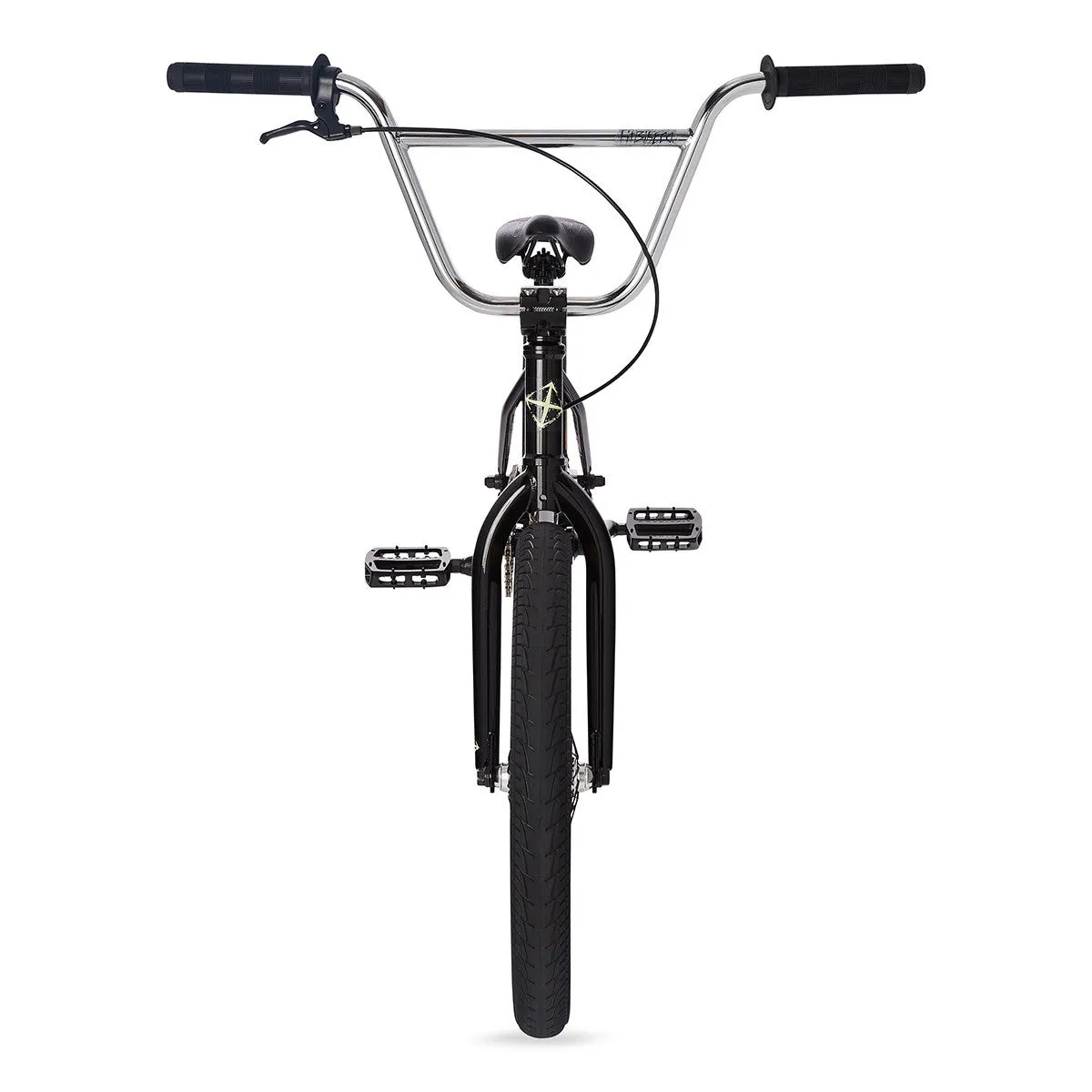

Our 2023 TRL bikes start with longer 21” and 21.25” top-tube trail geometry frames with chain-stay mounted brakes. Traditional 33mm offset forks pair perfectly with the stable 74.5-degree TRL head-angle. We spec’d classic 29” X 9” 11 degree back and 2 degree up 2-piece bars with FIT Long Tech flanged grips on all 4 TRL models. Other notable features on 2023 TRL’s include double walled FIT OEM rear rims, female front axles, S&M Shield railed seats and 300 mm micro adjust seat posts.
- Ergonomic, aftermarket FIT alloy pedals

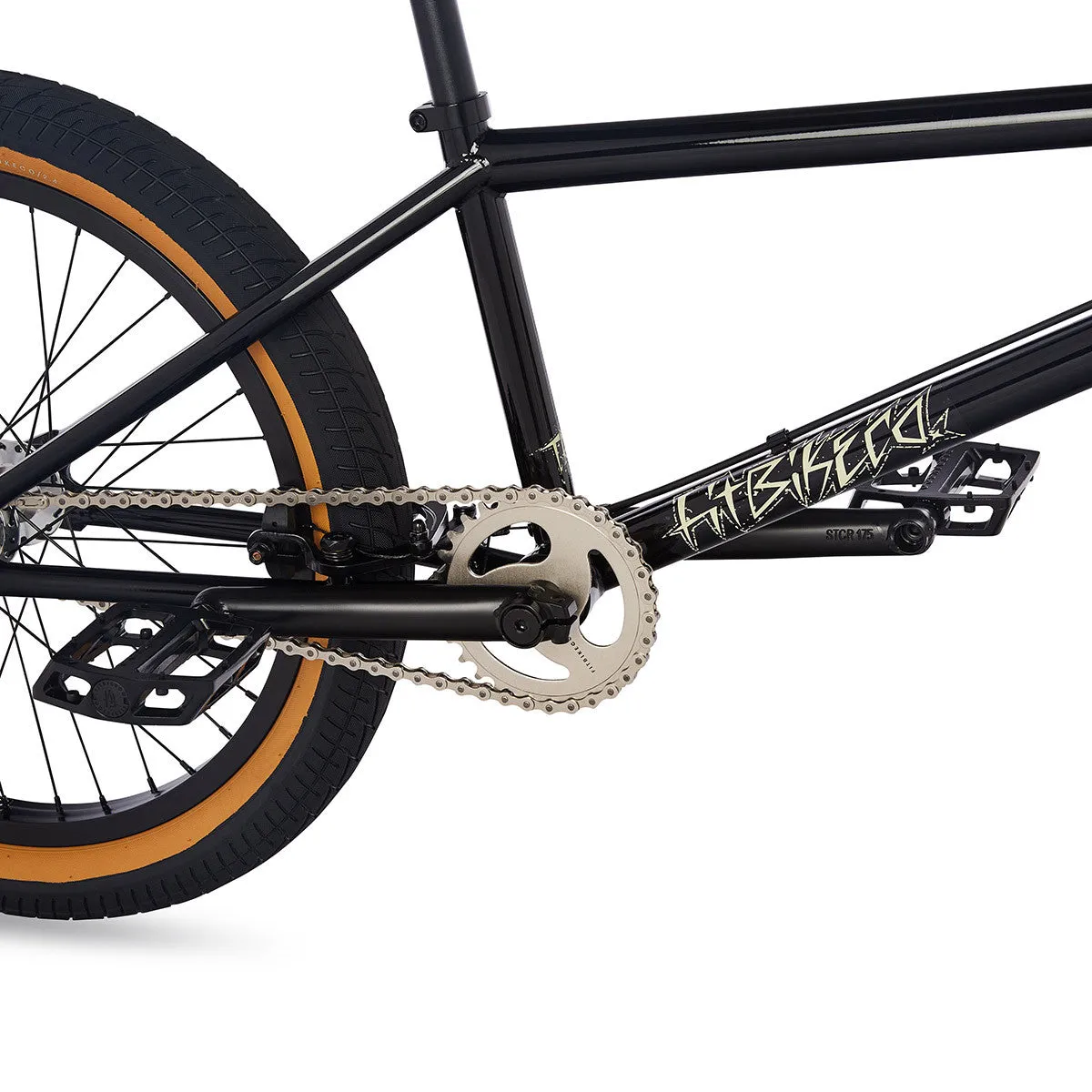

- FITSAW 30T w/10T driver and 175mm cranks
- Chain-stay mounted U-brake
- Female front axles
Features:
- Frame: 21” TT (XL) Cro-mo Front Tri
- Geometry: Trail W/74.5 Ha
- Headset: Integrated
- BB: Sealed Mid
- Bars: 2-piece 9” X 29”
- Fork: Tapered W/33mm Offset
- Stem: Fit Top Load
- Grips: Fit Long Tech W/flange
- Seat: S&M Shield Railed
- Seat Post: 300 mm Micro Adjust
- Cranks: Tubular Cro-mo 175mm
- Sprocket: Fitsaw 30T
- Pedals: Fit Alloy
- Front Wheel: Fit S1w W/sealed Female Axle
- Rear Wheel: Fit OEM Double Wall W/sealed 10T Cassette
- Tires: Fit OEM 2.4”
- Brakes: New U-brake W/more Tire Clearance & Softer Pull Springs
- Weight: 26.9 Lbs / 12.2 Kg
