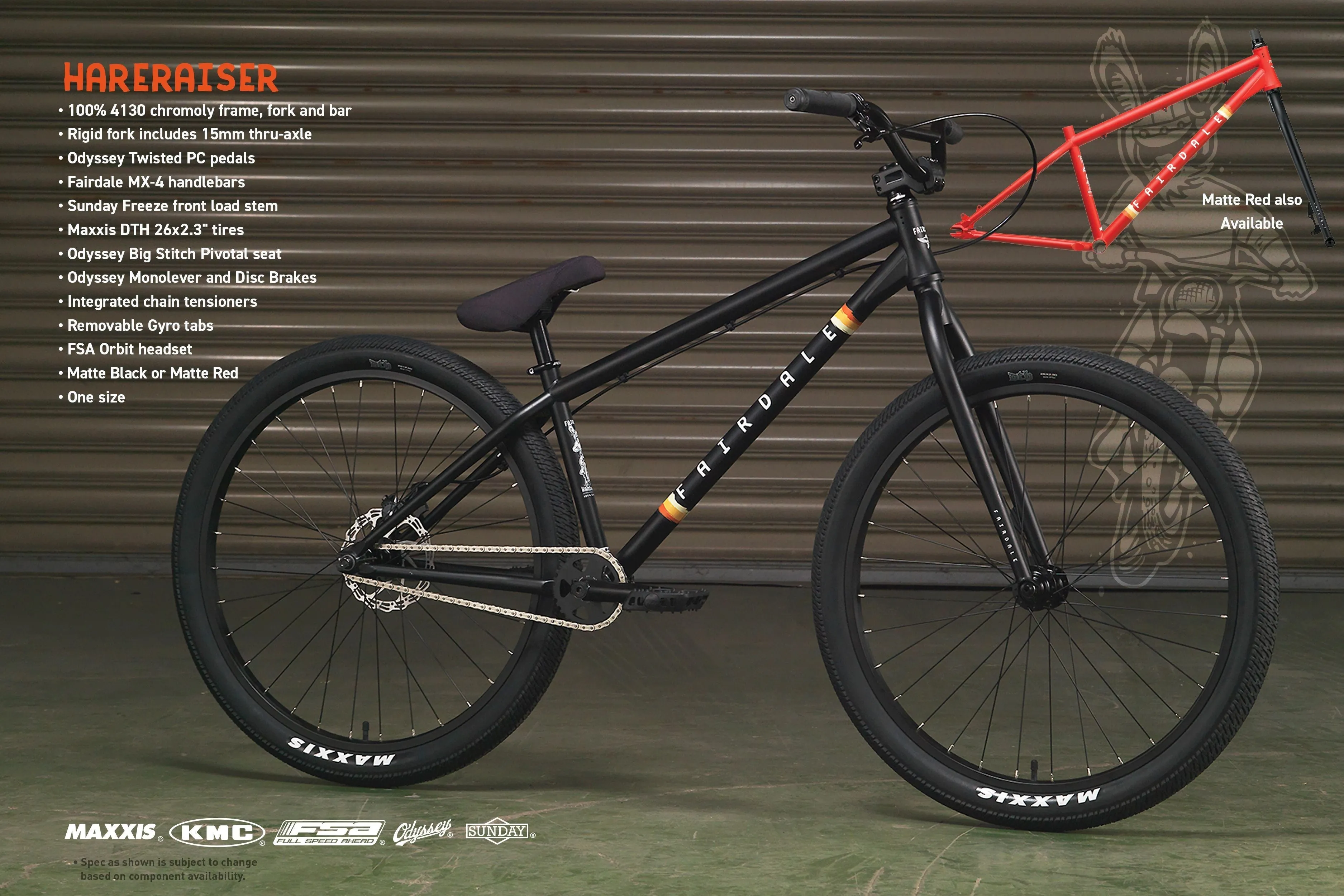

After successfully introducing the Hareraiser frame, we were asked many times for a complete bike. The frame continues to be a fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.
The rigid version comes equipped with a Fairdale Hareraiser Chromoly fork with a 15mm through axle. Leaning into our BMX roots with a Fairdale MX-4 handlebar attached to a Sunday Freeze Front Load stem.
Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible.
Features
- Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount

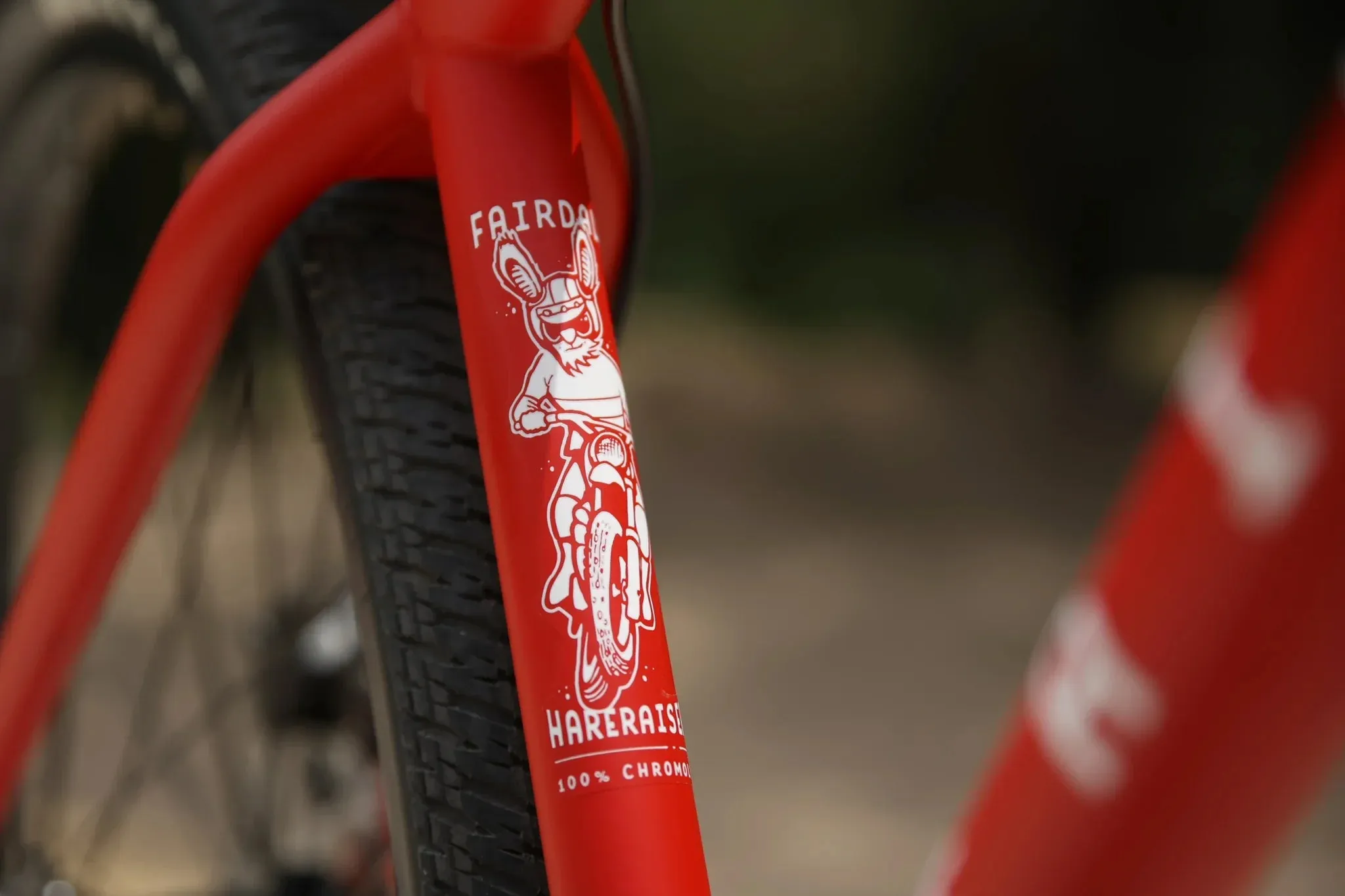

- Fork: Fairdale Hareraiser Chromoly, 15mm Thru-Axle
- Handlebar: Fairdale MX-4
- Stem: Sunday Freeze, 48mm Front Load
- Headset: FSA Orbit Sealed
- Brake Lever: Odyssey Monolever
- Brakes: Mechanical Disc
- Grips: Fairdale Swan

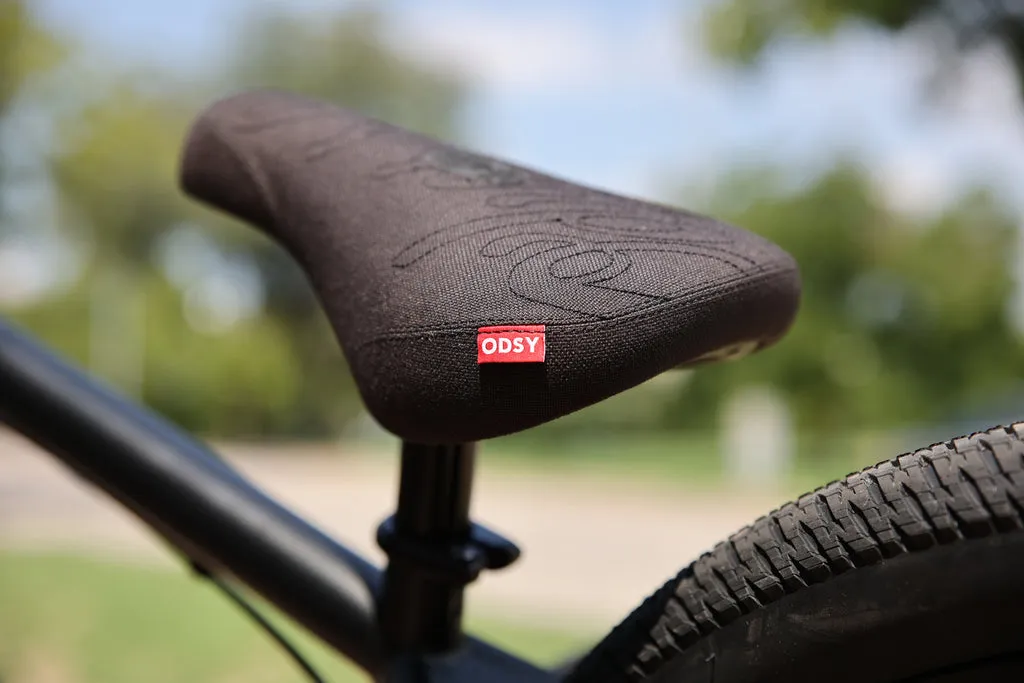

- Saddle: Odyssey Big Stitch, Pivotal
- Seat Post: Pivotal 27.2mm
- Seat Clamp: Fairdale 30mm
- Cranks: 19mm 8-Spline, 170mm
- Chainwheel: 28T
- BB Parts: Euro
- Pedals: Odyssey Twisted Pro PC
- Rims: 26" 32H
- Front Hub: Sealed 15mm Thru Axle
- Rear Hub: Sealed Cassette, 3/8" Axle, Disc
- Tires: Maxxis DTH 2.3"
- Chain: KMC Z1eHX
- Driver: 12T
Sizing
- 26": 5'6" height and up
Geometry
- Build: Rigid
- Fork Travel: N/A
- Fork Axle to Crown: 455mm
- Fork Offset: 30mm
- Top Tube (Effective): 625mm
- Seat Tube (BB Center to TT Center): 340mm
- Seat Tube Angle: 70.5°
- Head Tube Length: 120mm
- Head Tube Angle: 73°
- Chain Stay Length: 379-389mm
- Standover: 678mm
- Stack: 561mm
- Reach: 452mm
- BB Drop: 28mm
- Rear Dropout Spacing: 10x135mm
- BB Type: 73mm threaded
- Seat Post: 27.2mm
- Seat Clamp: 30mm
- Rear Tire Clearance: 2.3"
- Wheel Size: 26"
